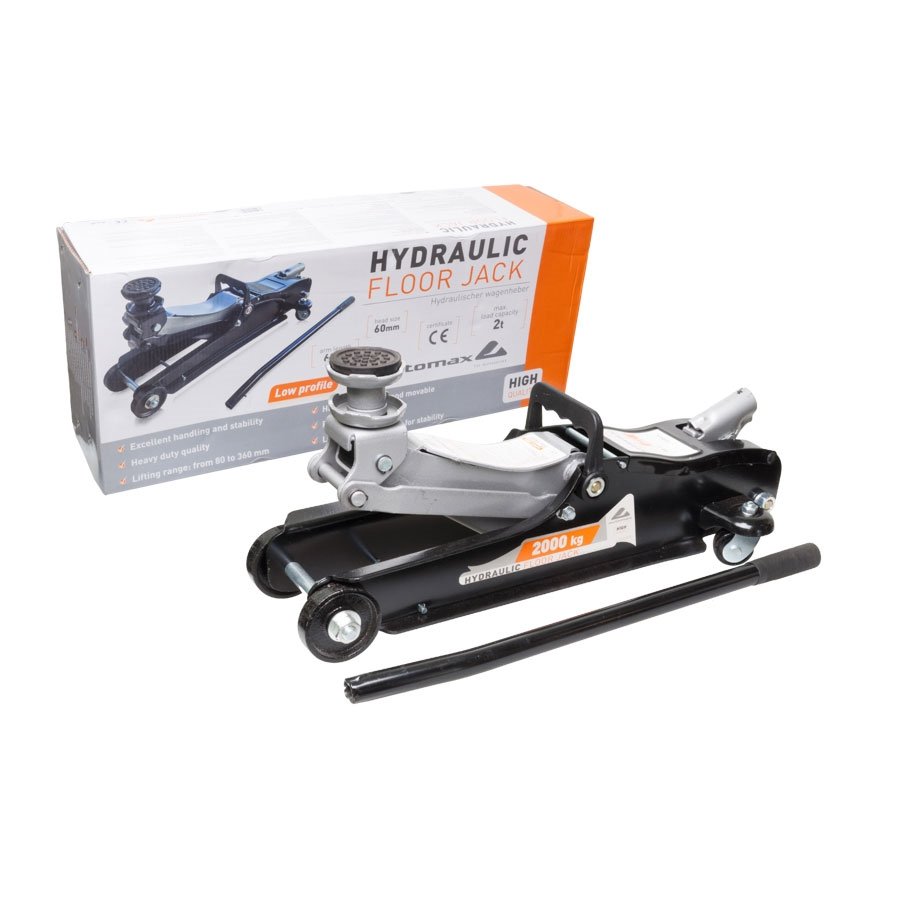

Low Profile Floor Jack 2t

Code:7946/BZ

EAN:8

Hydraulic Floor Jack 2000kg
Technical data /According to type:

Maximum loading capacity 2000 kg
Minimum height 80 mm
Maximum height 360 mm
Warning: Hydraulic jack is intended for rising of all types of cars for change of wheels, until it’s loading capacity is exceeded and it’s stroke is sufficient. Hydraulic Jack is not intended for rising of cars for work under the car.

Operating instructions:
1. Before lifting the vehicle, ensure the vehicle is set firm to prevent inadvertent vehicle movement.
2. Make certain that the Hydraulic Jack is set on a flat, level and secure surface.
3. Set the Hydraulic Jack under the lift point provided by the manufacturer of the vehicle. Attach and secure the valve block to the surface in the highest possible point. Before lifting the vehicle, mount the overflow valve tight, which is on the left side of the metal base. Operating the valve is very easy – by pumping the handle, set the shape of the valve.
4. Lift the vehicle to the desired height. While working with the Jack, for your safety and those around you, ensure the vehicle is set firm to prevent inadvertent movement.
5. To lower the vehicle, open the safety valve.
6. While working with the Jack, never put any part of your body too close or under the vehicle to prevent being injured or crushed. While working, do not touch the valve with bare hands.
Maintenance: The Jack must be clean. It should be cleaned once every 14 weeks. To check the oil level, see the rim on the side of the upper part of the piston. The oil should be just below the rim. All the movable parts should be lubricated with grease.
